Sidewall Slot Diffuser

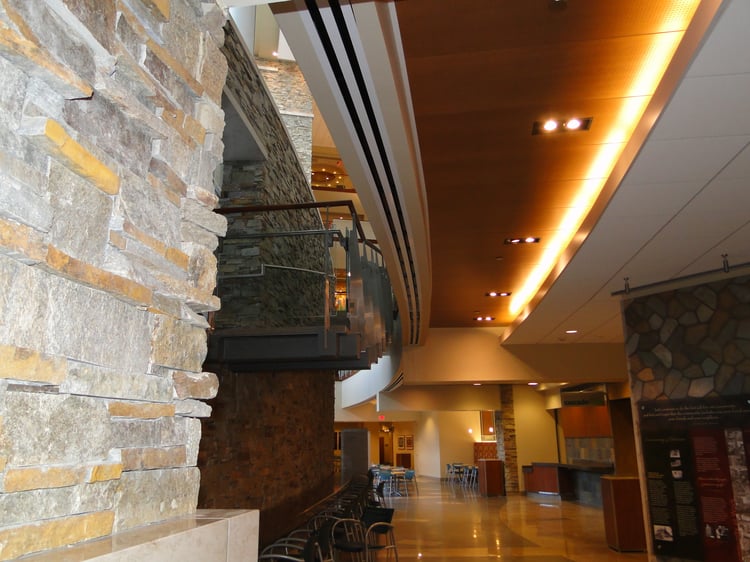

Sidewall Linear Slot Diffuser
FlowBar’s outstanding performance allows higher air flows than conventional linear diffusers. The wide array of slot widths allow for more CFM per linear foot while minimizing noise and pressure loss. The Flowbar system is available in continuous linear, incremental linear and square configurations. FLOWLINE™ LINEAR DIFFUSERS A The FlowLine™ FLV Series continuous slot diffuser is designed for both ceiling and high sidewall applications and provides total air pattern control flexibility. Similar in appearance to the FLH Series, the FLV Series features adjustable pattern controllers that.
Aerodynamically designed blades provide a tight horizontal pattern that maintains stability even at low airflow rates, making the SDS ideal for VAV applications. Excellent for architectural applications, the SDS has many mounting styles and is available with multiple slot widths and quantities to meet a range of airflow requirements.
Construction OptionsSidewall Slot Diffuser
Mud In Slot Diffuser
- Models
- Supply (SDS)
- Return (SDR)
- Curved supply/return (SDC)
- 4-way Slot Diffuser (SDS4)
- Plenum
- Sloped (SDA)
- Square (SDB)
- Slot Widths
- 1/2 in.
- 3/4 in.
- 1 in.
- 1 1/2 in.
- Slot Quantity
- 1 to 10
- Accessories
- Blank-off strips
- Mitered corner section (MC)
